Aspects of a washing machine injection mold

2023-10-17

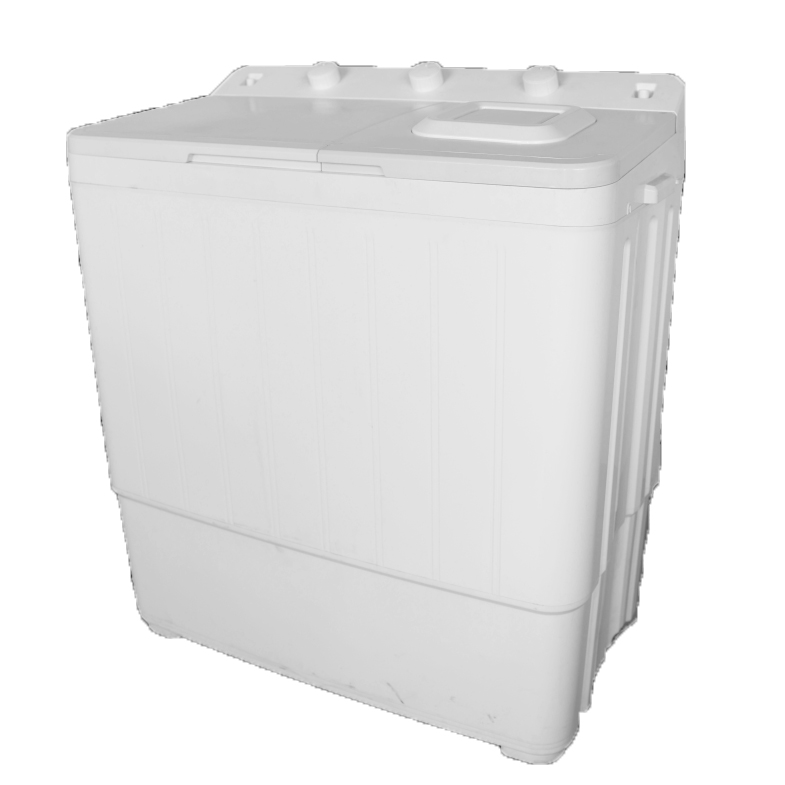

A washing machine injection mold, also known as a washing machine injection molding tool, is a specialized tool used in the manufacturing process of washing machines. Injection molding is a commonly used manufacturing method in which molten plastic material is injected into a mold cavity to create various parts and components of a product, such as the outer casing, control panels, tubs, and more in the case of washing machines.

Key features and aspects of a washing machine injection mold include:

1. Mold Construction: The mold is typically made from durable materials such as steel or aluminum. The choice of material depends on factors like the production volume, complexity of the part, and desired finish.

2. Cavity Design: The mold consists of one or more cavities that determine the shape and size of the parts being produced. The design of these cavities is crucial for achieving accurate and consistent part dimensions.

3. Core and Cavity: The mold usually consists of a core and cavity, which fit together to form the desired shape of the part. Molten plastic is injected into the space between the core and cavity.

4. Cooling System: Efficient cooling channels are integrated into the mold to ensure proper cooling and solidification of the injected plastic material. Proper cooling is essential for maintaining part quality and reducing cycle times.

5. Ejection System: Once the plastic material has solidified, the mold opens, and an ejection system (such as ejector pins) is used to push the molded part out of the cavity.

6. Venting: Proper venting is crucial to allow air and gases to escape during the injection process, preventing defects like air pockets or incomplete filling.

7. Surface Finish: The quality of the mold surface directly affects the finish of the molded parts. Mold surfaces can be polished or textured to achieve the desired appearance and texture of the parts.

8. Injection Molding Machine: The mold is used in conjunction with an injection molding machine, which heats the plastic material to a molten state and injects it into the mold cavity.

9. Tooling Cost: Creating injection molds can be expensive, with costs depending on factors such as mold complexity, material, and the number of cavities.

10. Prototyping and Testing: Before full-scale production, prototypes or test molds may be created to verify the design, functionality, and quality of the parts produced.

Injection molds, including those used for washing machines, are critical components in the manufacturing process. The design, precision, and quality of the mold directly influence the quality and consistency of the molded parts. Manufacturers invest time and resources in designing and producing high-quality molds to ensure efficient and reliable production of washing machine components.
