Features and considerations regarding DIN valve square bases

2023-10-17

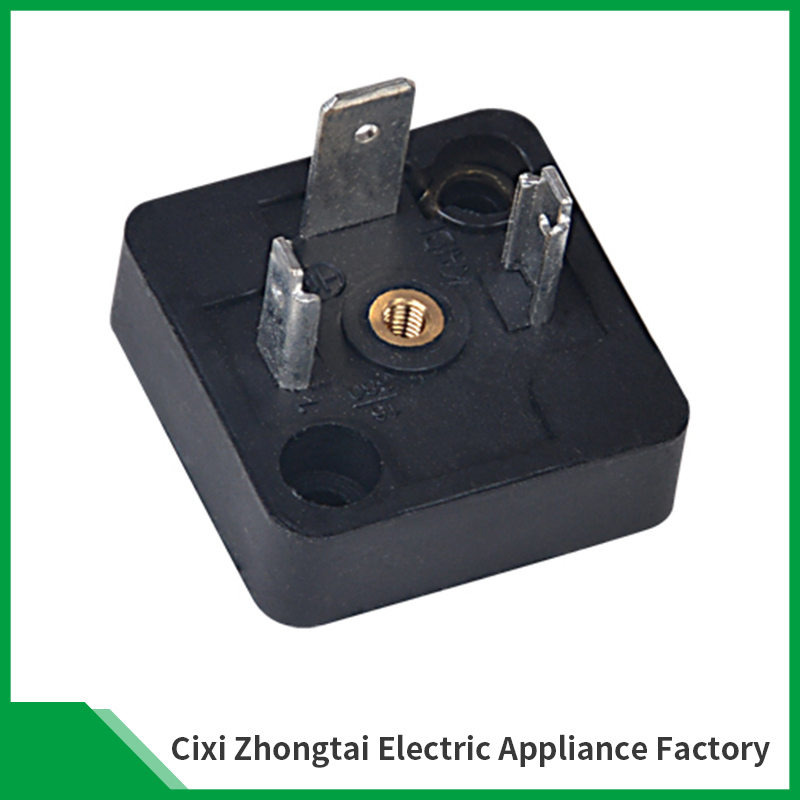

The DIN valve square base is a type of mounting base or bracket used to install and secure valves with a DIN standard interface. It is designed to provide a stable and reliable platform for mounting DIN valves in various applications, including industrial processes, fluid control systems, and automation systems.

Here are some key features and considerations regarding DIN valve square bases:

1. DIN Standard: The DIN valve square base is designed according to the DIN standard, which defines the dimensions and specifications for various industrial components and interfaces. The specific DIN standard associated with the valve square base may vary depending on the application and industry requirements.

2. Square Shape: The base has a square shape with holes or slots for secure attachment to a mounting surface. The square shape provides stability and uniform distribution of forces, ensuring the valve remains securely mounted during operation.

3. Mounting Holes: The square base typically features pre-drilled mounting holes that align with the standard hole patterns defined by the DIN standard. These holes allow for easy installation and compatibility with DIN valves that have corresponding mounting flanges or bolt patterns.

4. Material and Construction: DIN valve square bases are commonly made of durable materials such as metal alloys or engineered plastics. The choice of material depends on factors like the application environment, valve weight, and specific industry requirements.

5. Compatibility: The square base is designed to be compatible with DIN valves that have a matching square flange or bolt pattern. This ensures proper alignment and secure mounting of the valve onto the base.

6. Stability and Durability: The DIN valve square base is engineered to provide stability and durability, allowing the valve to withstand operational forces, vibrations, and other environmental factors. It ensures a reliable and secure mounting solution for the valve.

When selecting a DIN valve square base, consider factors such as the valve size and weight, the material and construction of the base, and the specific requirements of your application. Ensure compatibility between the valve and the base by checking the dimensions and hole patterns specified by the DIN standard.

It's recommended to consult the manufacturer's specifications or documentation for the specific DIN valve square base you are considering, as they can provide detailed information about its compatibility, load-bearing capacity, and installation guidelines.
