A ground joint coupling is a type of hose coupling used primarily in high-pressure steam and compressed air applications. It provides a secure and leak-resistant connection between two hoses or between a hose and a pipe or other equipment. Ground joint couplings are designed to handle extreme pressure and temperature conditions, making them suitable for industrial settings where steam or high-pressure air is used. Here are some key features and details about ground joint couplings:
Key Features:

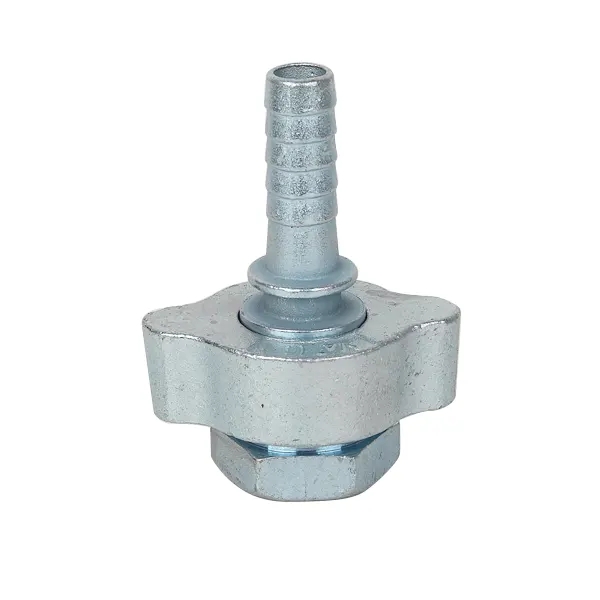

1. Interlocking Design: Ground joint couplings have a unique interlocking design that provides a secure and leak-free connection. They consist of two parts: a spud and a wing nut. The spud is attached to one hose, while the wing nut is connected to the other hose. When tightened together, the interlocking lugs on both parts create a tight seal.
2. Serrated or Smooth Hose Shank: The spud typically has a serrated hose shank that grips the hose securely, preventing it from slipping off under high pressure. Some versions may have a smooth hose shank.
3. Wing Nut: The wing nut is used to secure the connection by threading it onto the spud. Its design allows for easy and quick installation and removal.
4. Pressure and Temperature Resistance: Ground joint couplings are specifically designed to handle high-pressure steam and air applications, with working pressures ranging from several hundred to thousands of psi. They are also suitable for elevated temperatures associated with steam, but compatibility with the hose material must be considered.
5. Materials: Ground joint couplings are typically made from materials such as steel, stainless steel, or brass to ensure durability and resistance to corrosion.
6. Sizes: These couplings come in various sizes to accommodate different hose diameters and application requirements.
Applications:
Ground joint couplings are commonly used in industrial settings where high-pressure steam or compressed air is utilized. Some common applications include:
1. Steam Cleaning: Ground joint couplings are used in industrial and commercial steam cleaning equipment to deliver high-pressure steam for cleaning and sanitizing purposes.
2. Steam Hoses: They are used to connect hoses to steam supply lines and equipment, such as boilers, heat exchangers, and steam traps.
3. Compressed Air: Ground joint couplings can also be used with compressed air hoses and equipment where a secure and leak-resistant connection is required.
4. Chemical Plants: In chemical processing facilities, they may be used for various high-pressure applications where steam is used as a heat transfer medium or for other industrial processes.
It's important to note that proper installation and regular inspection of ground joint couplings are essential to ensure their safe and reliable operation. Leaks or loose connections in high-pressure steam systems can be hazardous and should be promptly addressed. Additionally, the compatibility of the hose material with the conveyed fluids and temperature conditions should be carefully considered when selecting ground joint couplings for specific applications.
