Key features and functions of an AC surge protective device

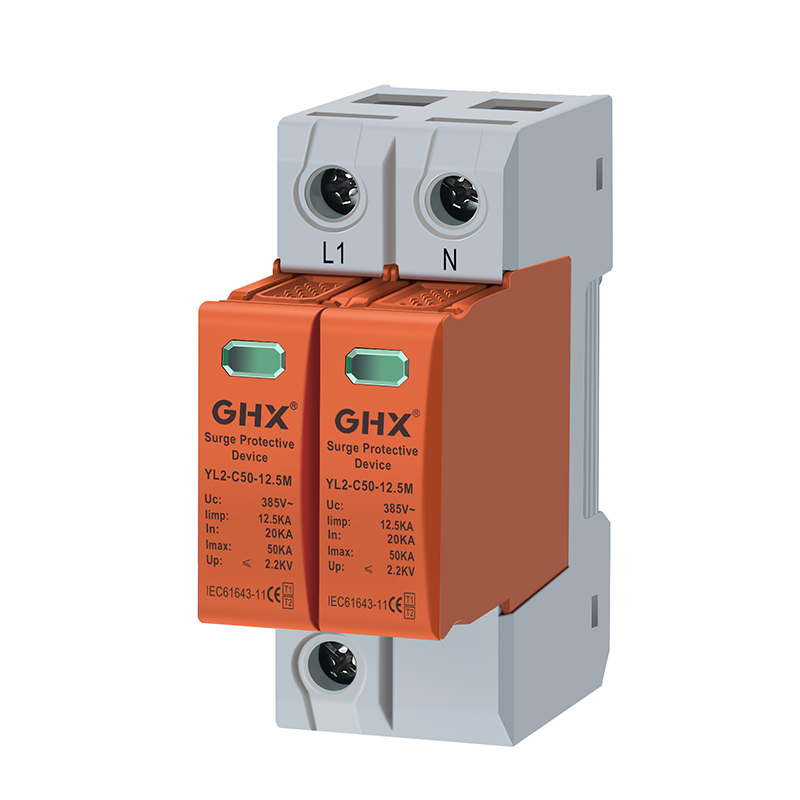

An AC surge protective device (SPD), also known as a surge protector or lightning arrester, is an electrical device designed to protect sensitive electronic equipment and systems from voltage surges or transient overvoltages that can occur in alternating current (AC) electrical systems. These surges can be caused by lightning strikes, switching operations, or other electrical disturbances. AC SPDs divert excess energy from these surges to ground, preventing it from reaching and damaging connected equipment.

Here are the key features and functions of an AC surge protective device:

1. Surge Protection: The primary function of an AC SPD is to provide surge protection by suppressing and clamping voltage surges that exceed safe levels. When a surge occurs, the SPD conducts the excess energy to ground, preventing it from reaching and damaging sensitive equipment.

2. Voltage Rating: AC SPDs are available in various voltage ratings to match the AC voltage of the electrical system they are intended to protect. Common voltage ratings include 120V, 240V, and 480V, depending on the application.

3. Protection Modes: SPDs typically provide protection in one or more modes, including line-to-ground (common mode), line-to-line (differential mode), and combined protection, depending on the configuration and design of the device.

4. Response Time: A fast response time is critical for SPDs to react quickly to voltage surges and divert the energy to ground before it can damage connected equipment. High-quality SPDs have response times in the nanosecond range.

5. Discharge Capacity (Imax): The discharge capacity of an SPD represents the maximum surge current it can safely handle without failing. It is important to select an SPD with an Imax rating that matches or exceeds the potential surge currents in the AC system.

6. Voltage Protection Level (Up): The voltage protection level, often denoted as Up, specifies the maximum voltage that the SPD allows to pass through to the protected equipment during a surge event. Lower Up values indicate better protection.

7. Mounting: AC SPDs can be mounted directly on the electrical panel, DIN rail-mounted, or integrated into specific equipment to protect it from surges.

8. Status Indicators: Many SPDs include visual and/or remote status indicators to signal when the device has experienced a surge event or reached its end of life and requires replacement.

9. Remote Monitoring: Some advanced SPDs offer remote monitoring capabilities, allowing users to monitor the status and performance of the surge protection device remotely.

Applications of AC surge protective devices include:

- Residential and Commercial Buildings: AC SPDs are commonly installed in residential and commercial electrical panels to protect sensitive electronic equipment, appliances, and electrical systems from surges.

- Industrial Facilities: They safeguard industrial equipment, machinery, and control systems from voltage surges that can disrupt operations.

- Telecommunications: AC SPDs are used to protect AC-powered telecommunications equipment, data centers, and network infrastructure.

- Power Distribution Systems: In power distribution systems and substations, they protect critical equipment and transformers from surges.

Selecting the right AC surge protective device is essential to ensure effective protection of your equipment and systems. Consider factors such as voltage rating, response time, discharge capacity, and the specific requirements of your AC electrical system when choosing an SPD. Proper installation and periodic maintenance are also crucial to ensure the ongoing reliability and performance of surge protection devices.
